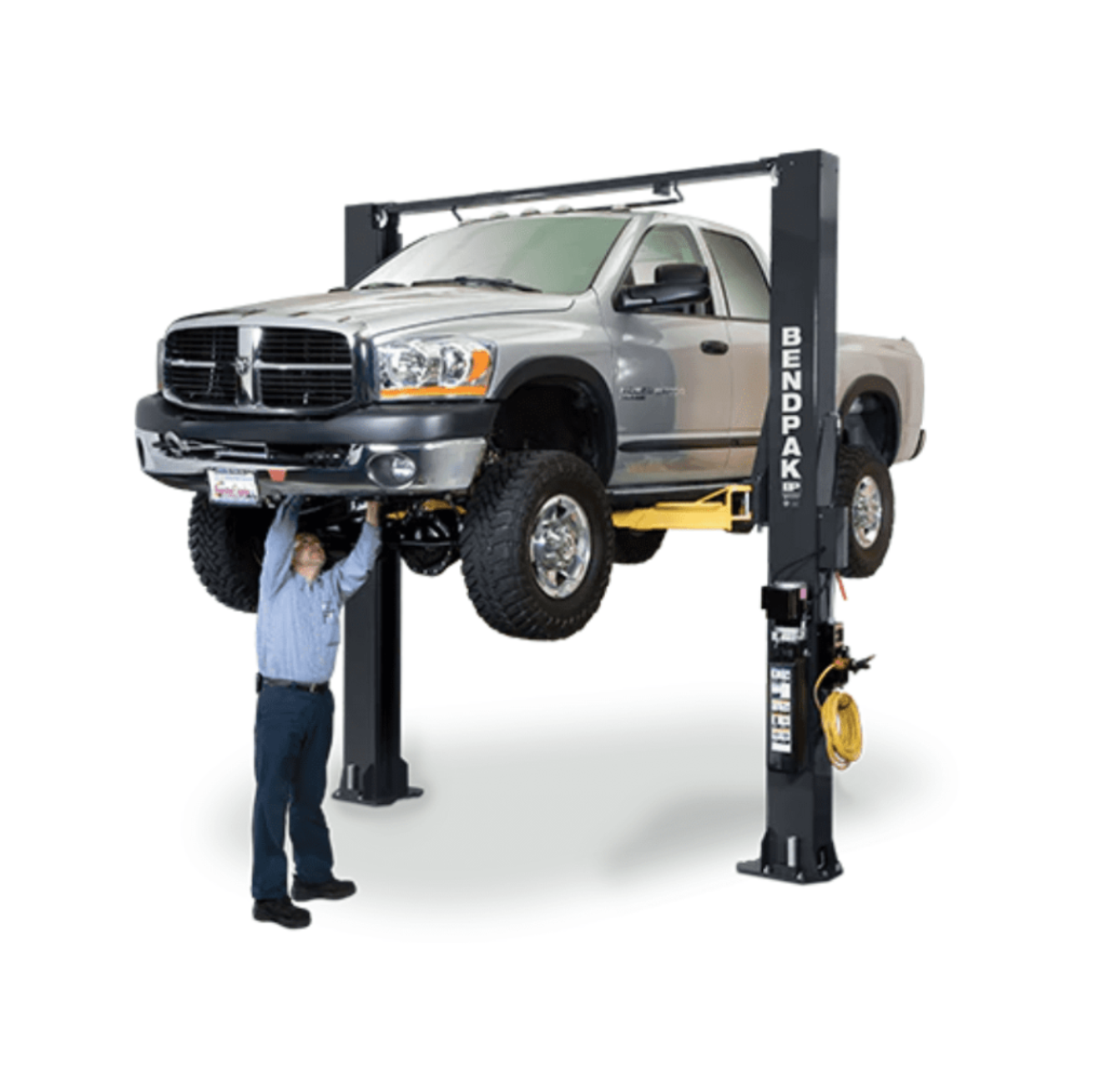

BendPak XPR-10S (5175395) 10,000‐lb

XPR-10S Two-Post Lift Offers More Power, More Options

The XPR-10S is a reflection of our commitment to produce a car lift of the highest quality. Featuring the most advanced engineering in the industry, this lift is built to safety standards well above normal OSHA/ALI/ETL requirements.

Every BendPak lift offers an abundant roster of options and accessories that allow you to fully tailor the lift to your unique circumstance. In addition to these features, you’ll be impressed with the long list of standard features and capabilities packed into the structure, parts and components.

When you buy a BendPak two-post lift, you can expect a significant boost in performance and life expectancy. No one surpasses us in quality or safety, which means your BendPak XPR-10S might be the last lift you ever purchase.

Features

• 10,000‐lb. lifting capacity
• Expandable top beam accommodates wide or narrow drive‐thru configuration
• Double‐telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar
• Telescoping arm design for more versatile arm positioning
• Single‐piece columns
• Single‐point safety release
• Drop‐end arms provide a lower pad height
• Dual hydraulic direct‐drive cylinders
• Oversized 53″ tall carriage for superior strength and durability
• Electric/hydraulic power system
• Large, 17″ x 19″ A36 steel base plate
• Self‐lubricating dura‐glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3″
• Plated arm restraints and arm pins for rust prevention
• Heavy‐duty 1/2″ aircraft‐quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue

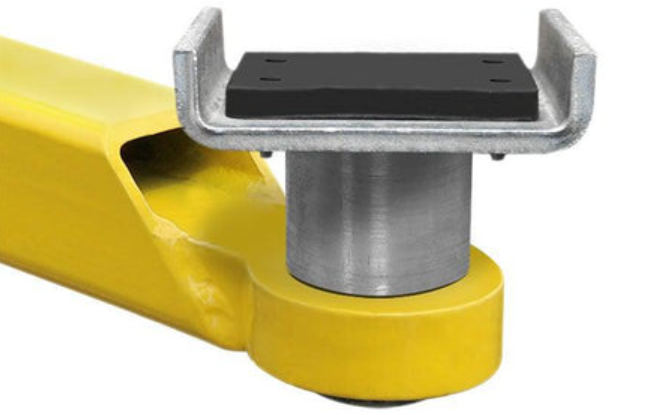

• 4‐piece 63 mm stackable adapter set comes standard
• Triple‐telescoping front arms
• ETL Approved

Specifications

Lifting Capacity*10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle5,000 lbs. (2,268 kg)Rise
A – Rise:69″ (1,753 mm)
B – Rise + Pad Only:75″ (1,905 mm)
C – Rise + Pad + 63 mm Adapter:77.5″ (1,969 mm)
D – Min. Height + Pad:4″ (102 mm)Time to Full Rise:45Outside Dimensions
E – Height Overall:145″ (3,683 mm)
F – Width Overall:132″ (3,353 mm) or 145″ (3,683 mm)
G – Outside Columns:126.75″ (3,219 mm) or 139.75″ (3,550 mm)Inside Dimensions
H – Inside Columns:105.5″ (2,680 mm) or 118.5″ (3,010 mm)
I – Drive-Thru Clearance:93″ (2,362 mm) or 106″ (2,692 mm)
J – Floor To Overhead Switch:141″ (3,581 mm)Arms & Pads
K – Front Arm Reach: (MIN)27.5″ (699 mm)
L – Front Arm Reach: (MAX)51.5″ (1,308 mm)
M – Rear Arm Reach: (MIN)34″ (864 mm)
N – Rear Arm Reach: (MAX)54.5″ (1,384 mm)
Screw Pad Adjustment:2″ (51 mm)
Max Load Per Arm2,500 lbs. (1,134 kg)
Power Unit Motor:220 VAC / 60 Hz / 1 PhNoise:45
dbShipping Weight:1,744-lbs. (791 kg)
Dimensions:150” x 24” x 39” (3810 mm x 609 mm x 990 mm)
