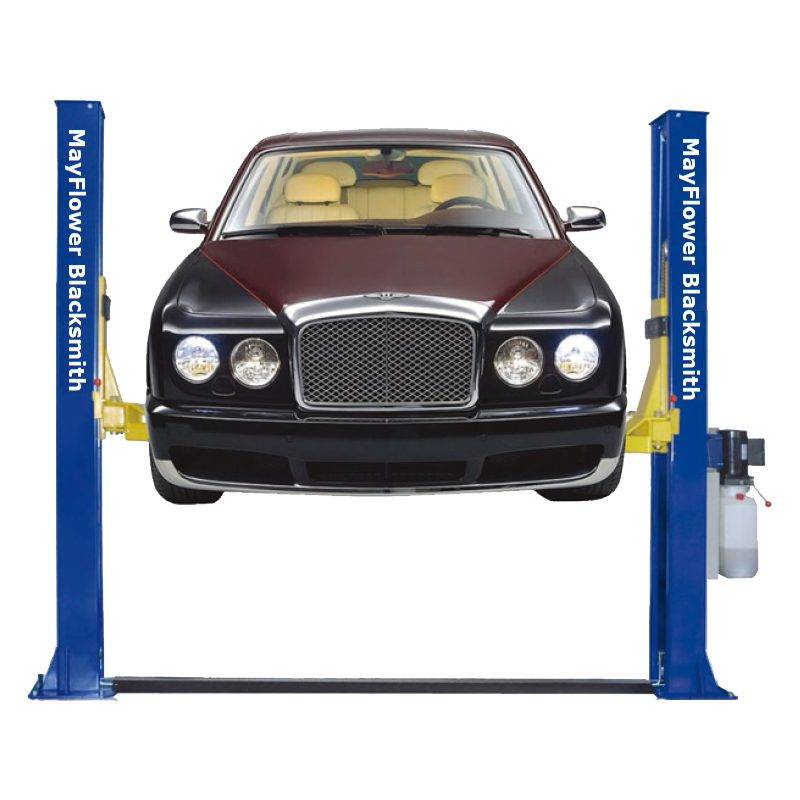

Mayflower Blacksmith Two Post Lift Floor Plate BP 9500 lbs

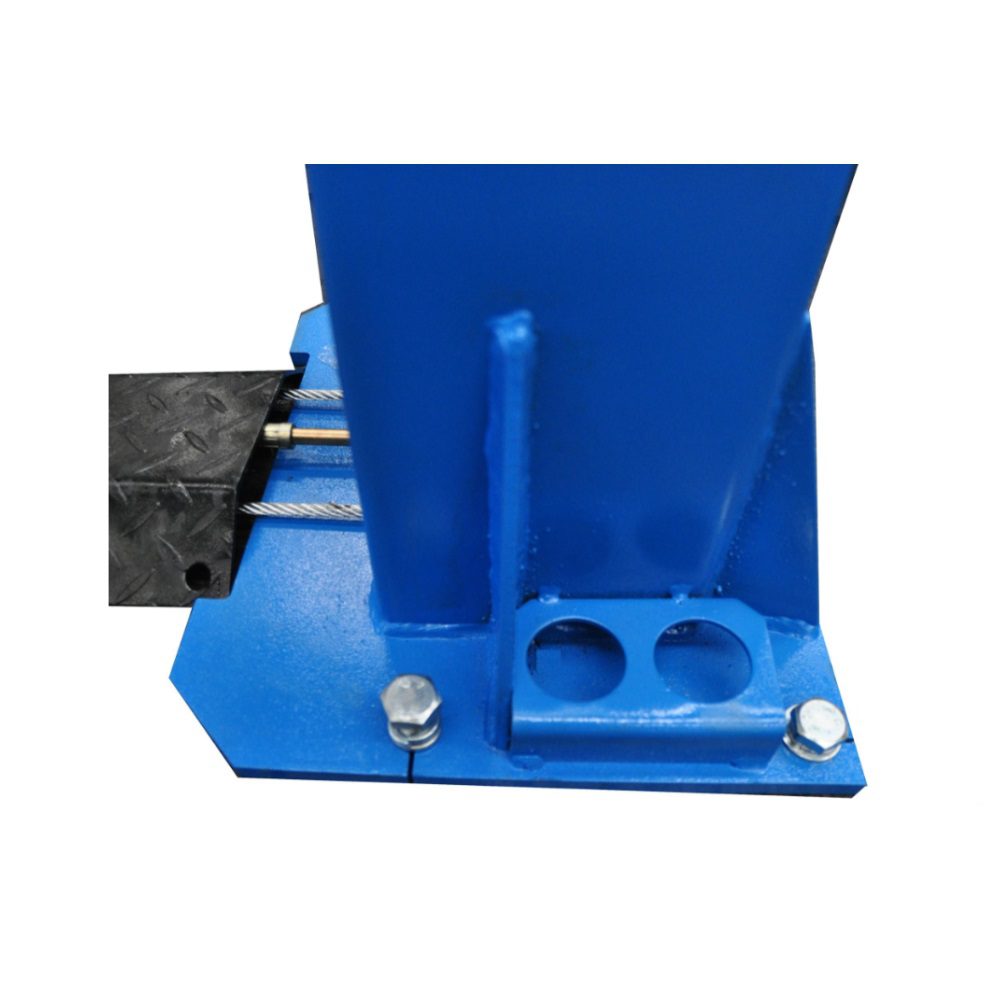

The Mayflower Blacksmith Two Post Lift Floor Plate BP is a heavy-duty lift designed for automotive service and repair shops. It has a lifting capacity of 9500 lbs, making it suitable for a wide range of vehicles. The lift features a two-post design and a floor plate base, providing stability and security during the lifting process. Its hydraulic operation provides smooth and controlled lifting, making maintenance and repair work on vehicles more efficient. The lift’s heavy-duty construction provides reliable and long-lasting performance. This lift is a versatile tool that helps make maintenance and repair work on vehicles more convenient and efficient.
Specifications:
Mayflower Blacksmith Two Post Lift Floor Plate BP 9500 lbs

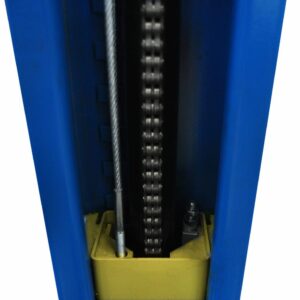

- Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
- Voltage: 220 Voltage
- Lifting weight capacity: 9,500 lbs
- Lifting height max: 71″
- Lifting height max with Truck Adapter: 75″
- Overall Height: 111″
- Overall Width: 132″
- Width between Posts: 106″
- Drive Thru Width: 98″
- Lifting Time: 40 sec – 50 sec
- Motor: 220V 60Hz 1 Phase / 3 Horse Power

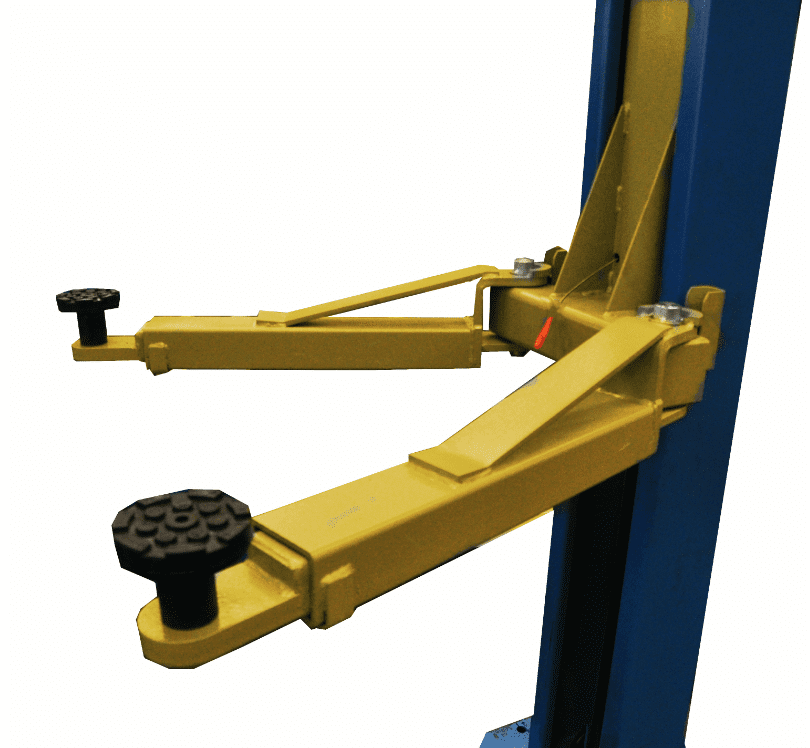

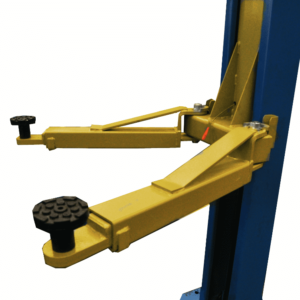

- Front Arm assembly 2 Stage reach from 28″ to 42″
- Rear Arm assembly 2 Stage reach from 32″ to 62″

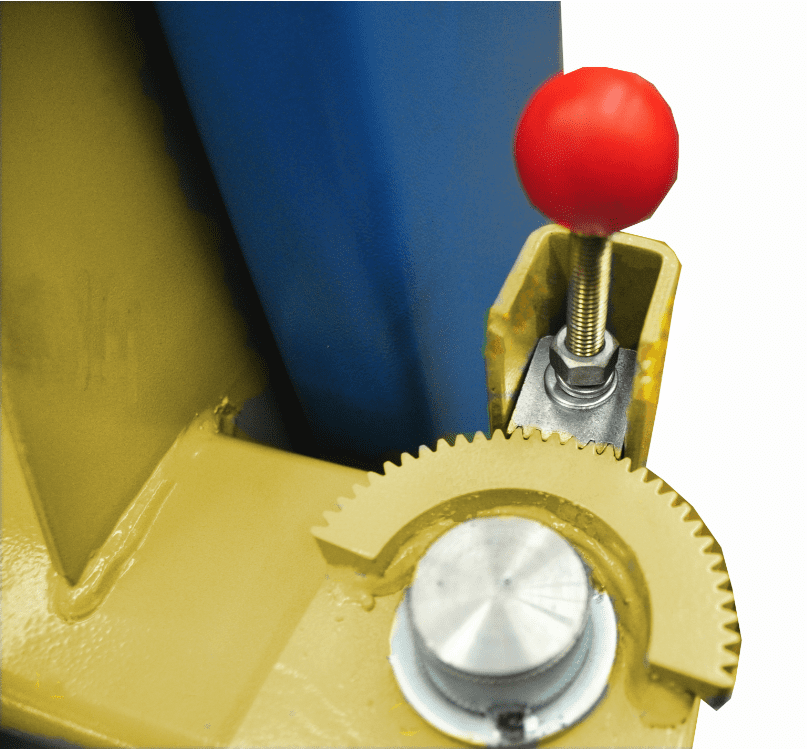

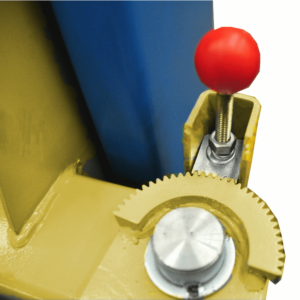

- Double two point safety lock release with built-in 18 locking positions
- Automatic arm lock restraints
- Drop-in type lifting pads and truck adapters included
- Relief valve built in power pump to prevent overloading

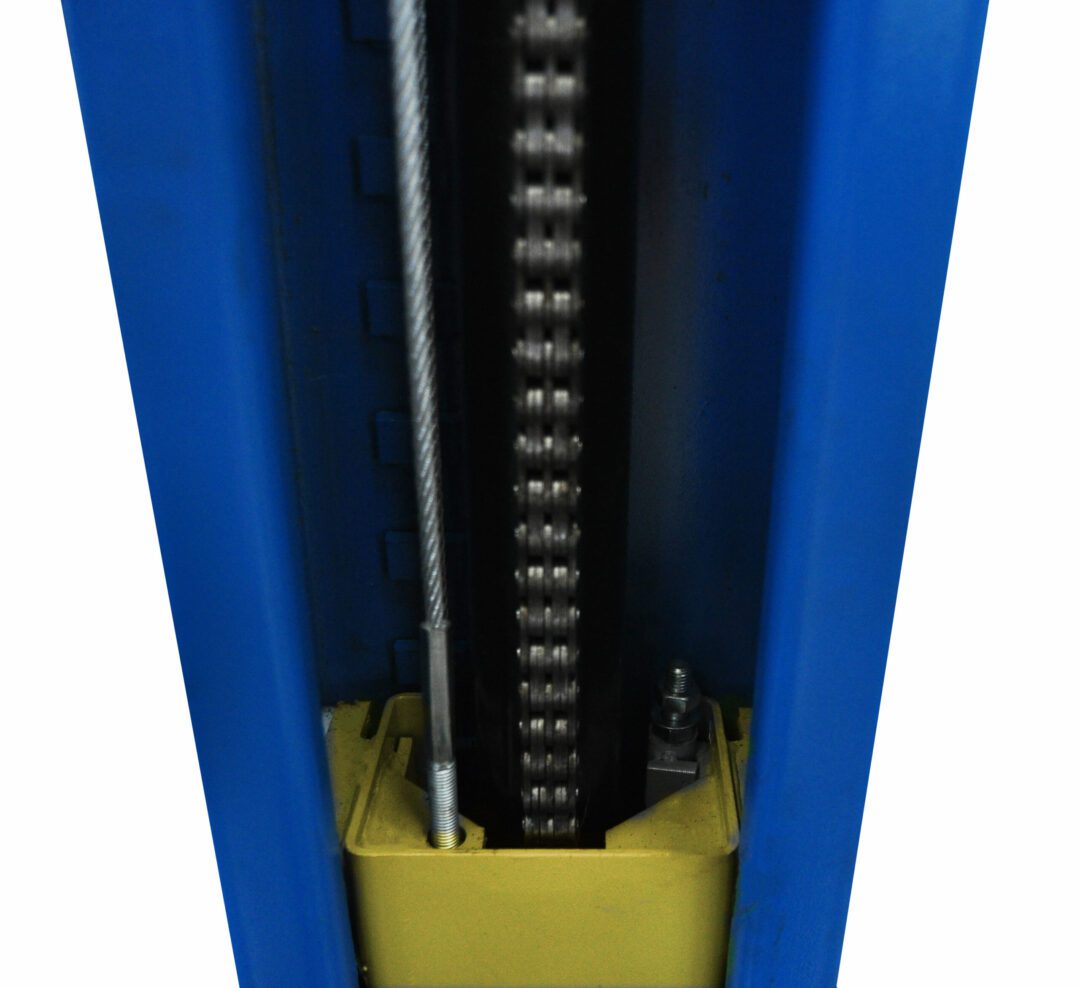

- Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life

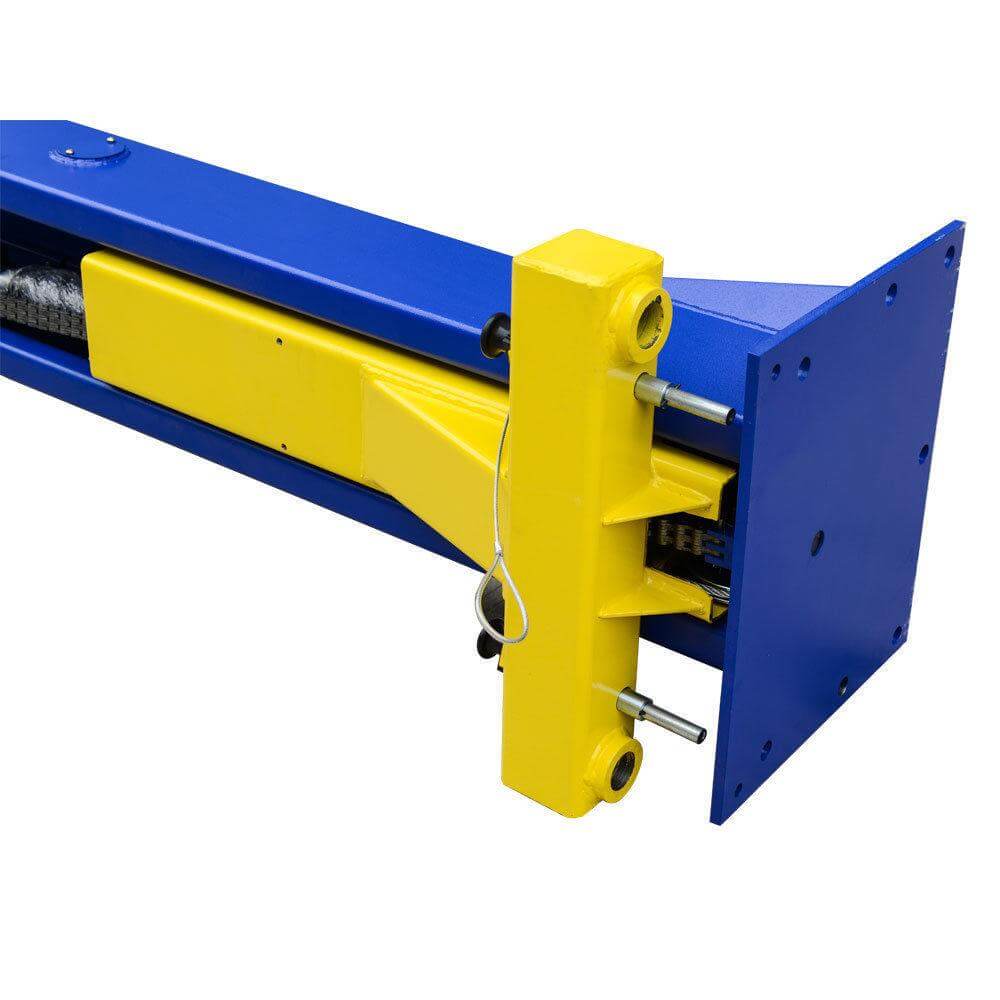

- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
- Anchor bolts/mounting hardware included
- 1 set of 4” Truck adapters included
- Door guards protection rubber is optional
- Blue Powder coated finish provides superior resistance against corrosion.
- Shipping Weight: 1250 LB
