Tire Changer Machine Wheel Balancer Combo Rim Clamp 14”-28“

Tire Changer and Wheel Balancer 806B350A 70D COMBO. TIRE CHANGER MACHINE FEATURES WHEEL BALANCER MACHINE FEATURES Rim clamp from outside 12″-26″ .

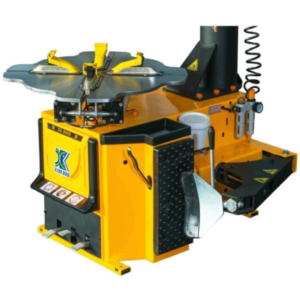

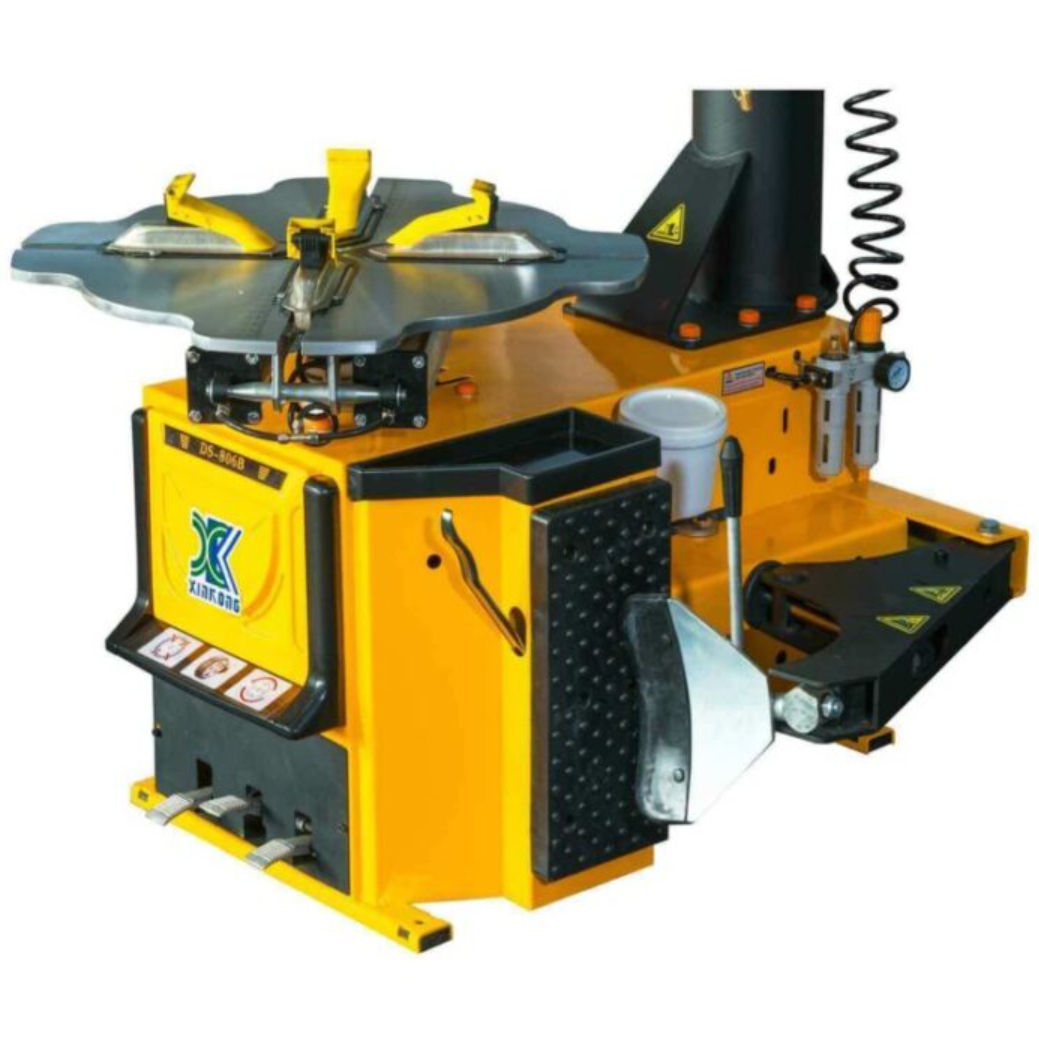

Tire changer machine features:

• Enhanced s41 hexagon shaft with better intensity to avoid mechanical deformation during working.
• The clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.
• Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.The clamping jaw is made of special materials and is firm and durable.
• Base of mechanical arm is a complete one set, inside with wear-resistant macromolecule nylon slide block, to achieve smooth operating.
• The structure design is novel, the layout is reasonable, in order to use more flexible and convenient.
• New design automatic working head instead of crowbar and quipped with plastic protective pad to double protect the rim from damage.

Changer machine technical parameter:

• Rim clamp from outside 12″-26″
• Rim clamp from inside 15″-28″
• Max wheel diameter 46″
• Max tire width 5″-14″
• Working pressure 8-10 bar
• Voltage 110V
• Power 1.1KW
• Complete machine packing size 1250x1050x1760mm
• Gross weight 816 lb

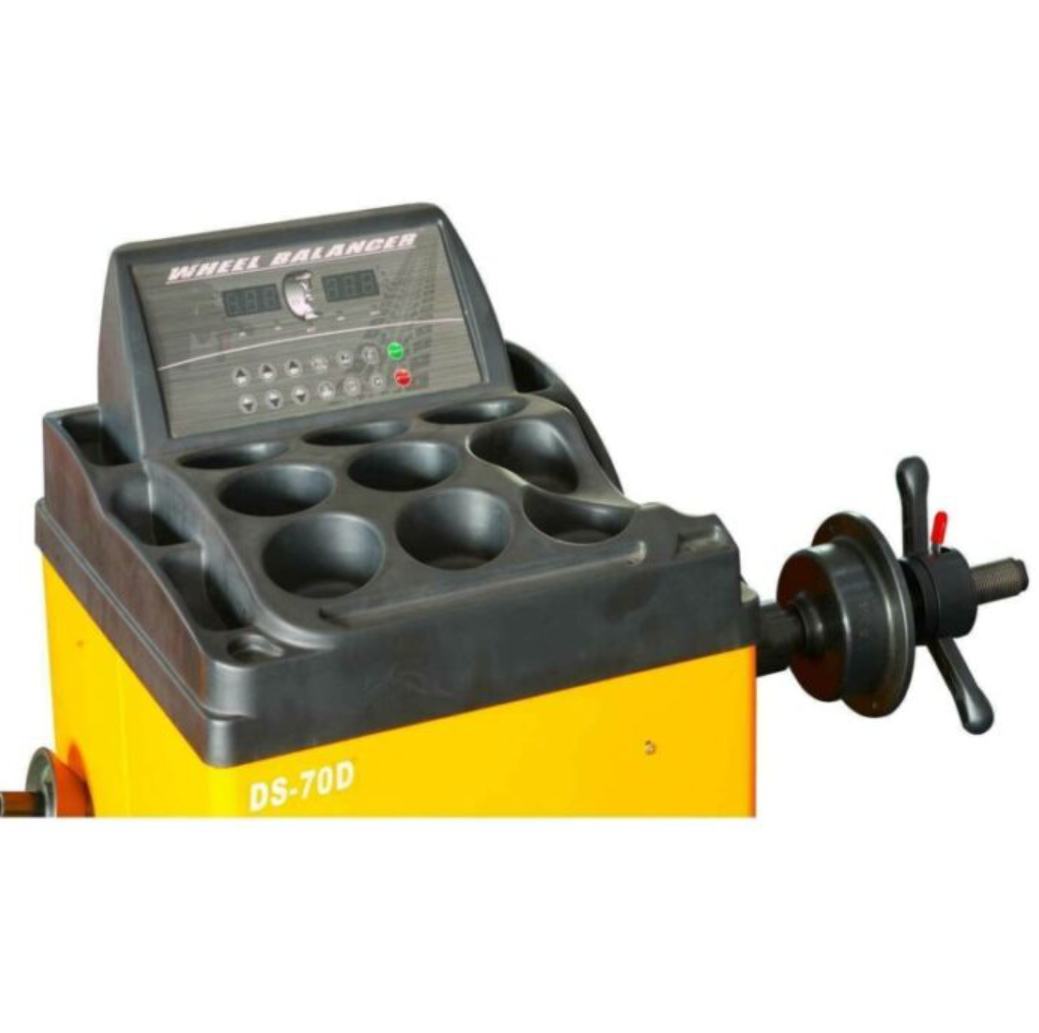

 Wheel balancer machine features:

• with Automatic Static Program And Dynamic Program, Alu Program.
• with External And Internal Data Set Arm, Simple Operation, Measurement Accuracy.
• with A Variety Of Balancing Program, Suitable For Different Wheel Structure.
• htd Program, Split To Hide Weight Behind Spokes.
• opt Program Wheel Vs Rim Optimization.
• foot Brake Positioning At Unbalanced Point, Improve The Balancing Accuracy.
• with Fault Diagnosis System To Check The Working Status Of Key Components, Easy To Detect And Solve The Problem.

Wheel balancer technical parameter:

• Rim diameter 10″-24″
• Max tire diameter 39″
• Tire width 1.5″-16″
• Max tire weight 154 lb
• Packing size 980x700x1050mm
• Rotation speed 200r/ min
• Balancer precision +-1g
• Motor 110V
• Gross weight 269 lb

Specifications:

• Rim Diameter 10″-24″
• Max Tire Diameter 39″
• Tire Width 1.5″-16″
• Max Tire Weight 154 Lb
• Packing Size 980x 700x 1050 Mm
• Rotation Speed 200 R/min
• Balancer Precision -1g
• Motor 110v
• Gross Weight 269 Lb
• Condition: New
• Power Source: Pneumatic
• Vehicle Type: ATV, Heavy Duty/Commercial, Passenger Vehicle
• Brand: XK
• Set or Single Item: Set
• UPC: Does not apply

Warranty:

12 Months Warranty On All Metal Parts, Pneumatic Parts, Electrical Parts And Motors! When You Choose Us, You Will Get The Best Warranty.

Most Of The Sellers Don’t Provide Or Only Provide Warranty For Those Parts For 3 Or 6 Months, 1 Year At Most. Please Compare With Others Before You Make The Decision. Get Into Our Shop And You Will See The Details Of Terms And Conditions, Especially The Best Warranty
