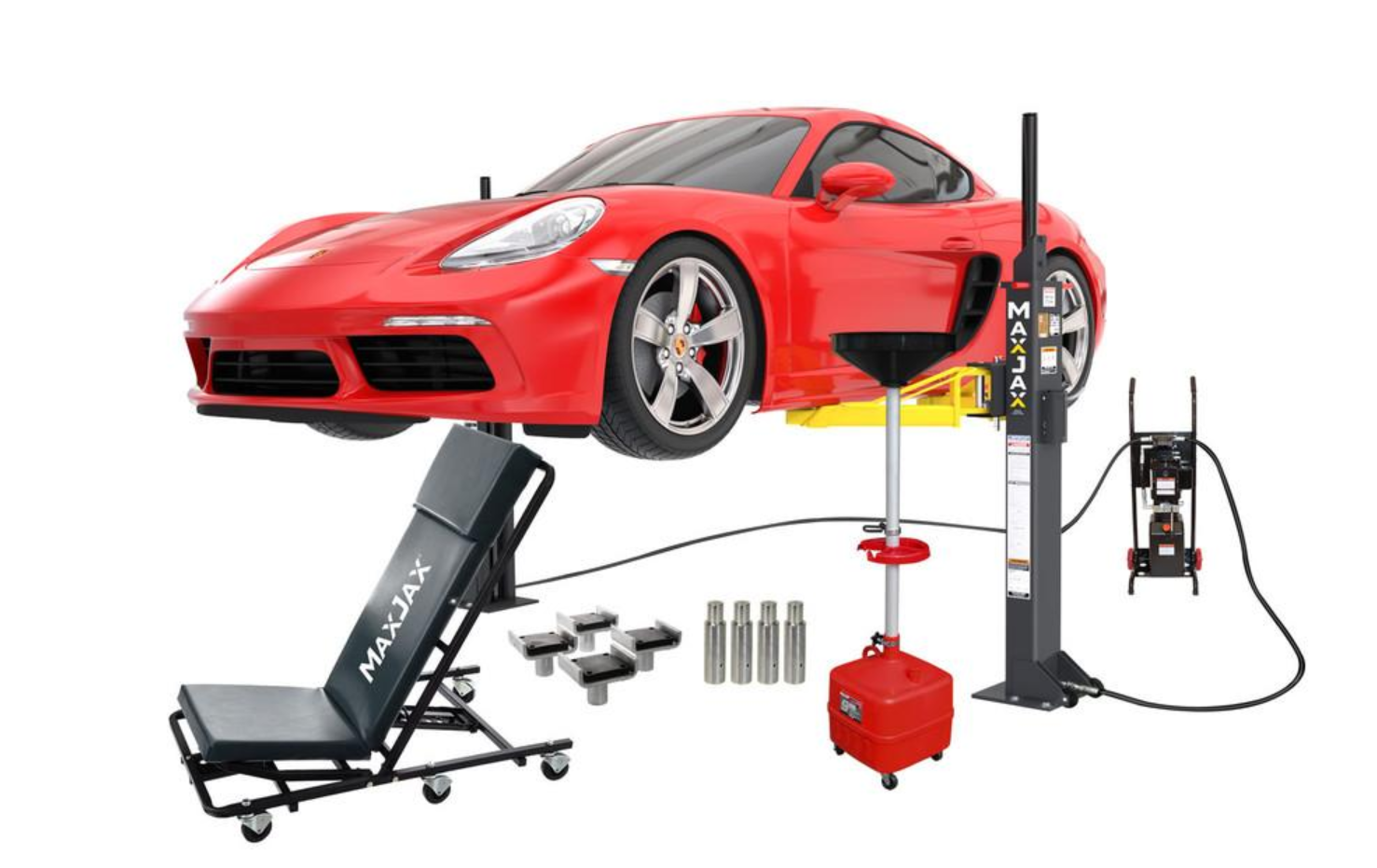

M6K + Tall Adapters + Frame Cradle Pads + Oil Drain + Adjustable Creeper

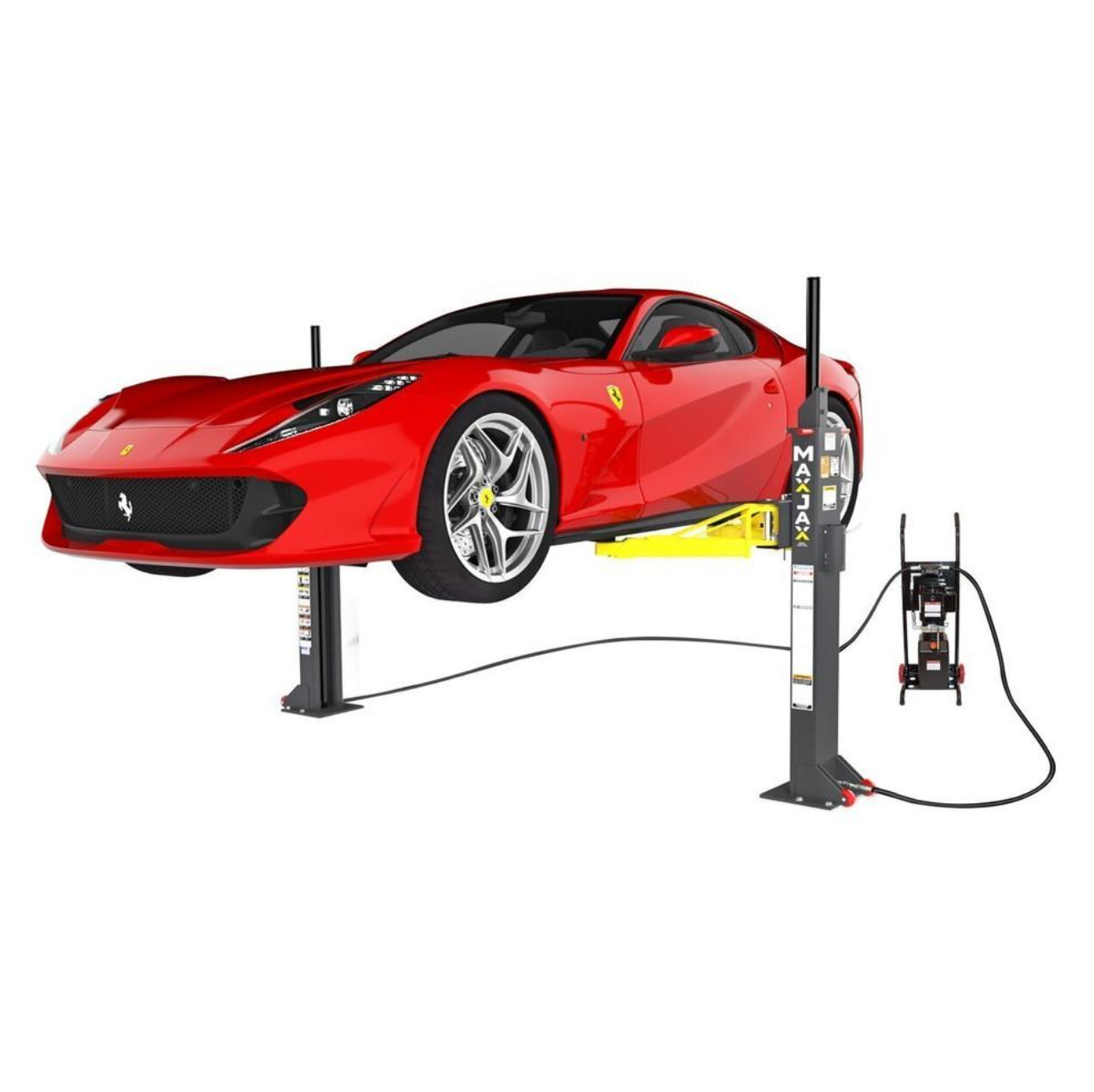

The Patented One-of-a-Kind MaxJax® Portable Car Lift
Empty heading
Safety Features from the Ground Up
- No one in the industry has a more sophisticated and comprehensive
research and quality control program than MaxJax, and our thousands of
customers worldwide prove it. - Low-pressure HVLP Direct-Drive cylinders eliminate the need for
lifting chains or screw mechanisms most commonly found on other lift
designs. - Hydraulic cylinders feature integrated velocity-fuse safety valves.
- A cast iron gear flow divider provides precisely equalized lifting for uniform division of hydraulic power.
- Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
- Arm restraints automatically engage each time the lift is raised.
- Detailed installation, maintenance and safety instructions accompany each MaxJax car lift.
- MaxJax encourages all owners to know their equipment and to follow
good safety practices when using any of our products. Your MaxJax car
lift equipment has been designed and built with your safety in mind, but
the ultimate responsibility for safe operation is with you, the
operator. - ALI Certified
MaxJax is protected by one or more patents or claims of patents in
the U.S. and elsewhere. This is provided to satisfy the virtual patent
marking provisions of various jurisdictions, including the virtual
patent marking provisions of the America Invents Act, as codified in 35
U.S.C. § 287(a).
PATENT NO. US 8.256.577 B2 and PATENT NO. US 9.150.395 B2
Features
Benefits of the MaxJax
It’s the features you get that set the MaxJax apart from the rest.
Every MaxJax unit is loaded with the right features that make it the
best choice when looking for a new car lift. Read through the long list
of features this car lift has to offer and you’ll easily come to the
conclusion that the MaxJax is no ordinary garage lift.
Clear undercar access
No other low-rise or mid-rise lift system provides more under-car
clearance and unobstructed floor space than the MaxJax lifting system.
Now you can easily access engine undersides, transmissions,
drive-shafts, starters, differentials or anything else requiring
under-car access.

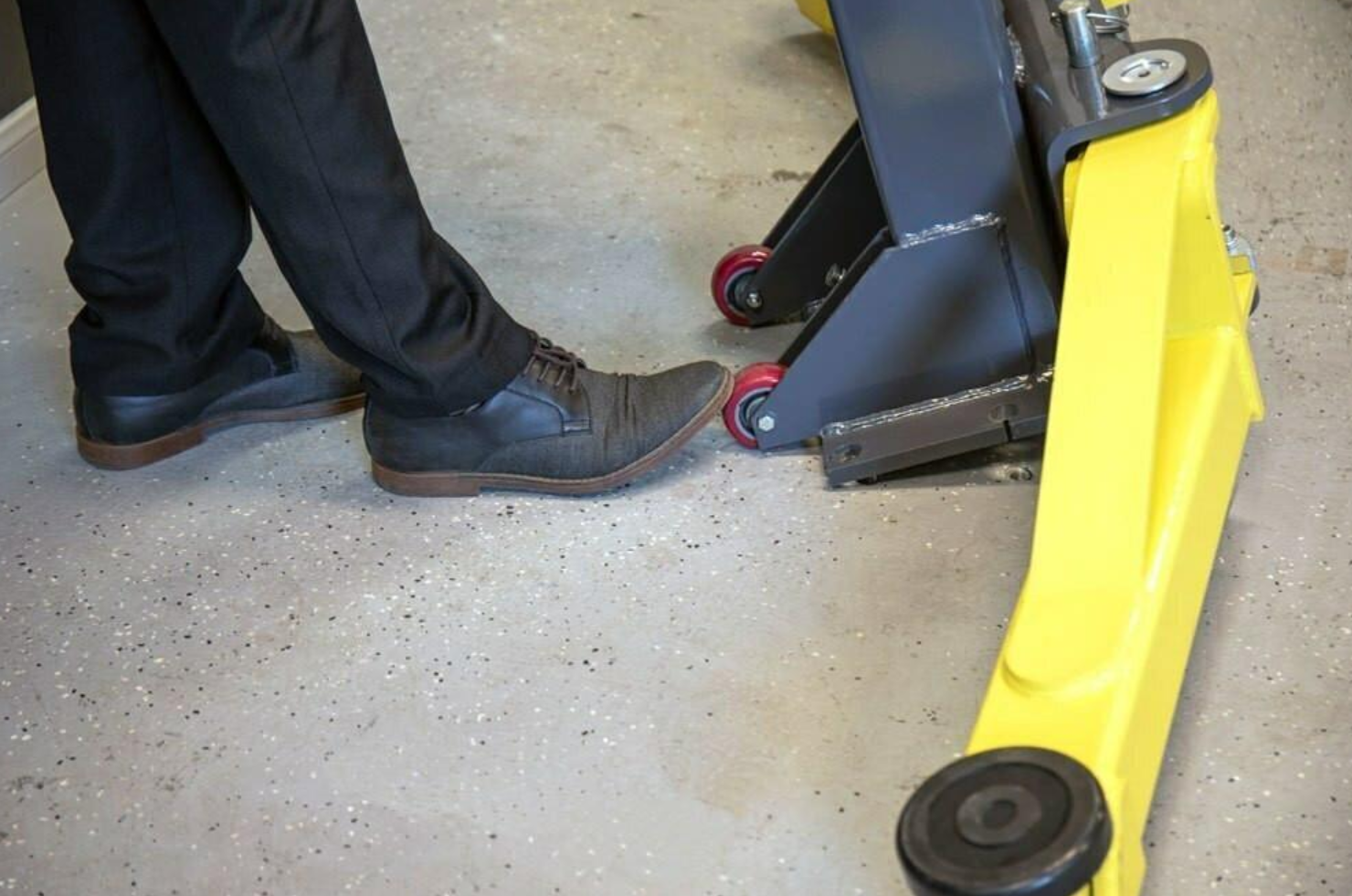

Portability
A two-post car lift with built-in wheels that allows you to use the
lift when you need it, then conveniently store it out of the way when
not in use keeping your garage and vehicle lanes clutter-free.
Stow to go in less than 15-minutes
Internally threaded recessed drop-in anchors and
quick-connect/disconnect hydraulic couplers provide for fast and simple
set-up. NOTICE: Before drilling into post-tension garage floors, always
consult a building engineer for determining cable locations and where to
avoid drilling.
Works like magic
A cast iron gear flow divider is the heart of the MaxJax® system,
providing precisely equalized lifting. The specially designed flow
divider/combiner is a positive-displacement fluid control device with
precise flow division of hydraulic power from one column to the other
even if load balance pressures change.
Mobile power unit cart
Our standard mobile power unit cart is small enough to be stored out
of the way and features a storage area for the hydraulic hoses. The
hydraulic power unit uses a dual voltage single-phase motor that
requires 110-volts AC and a 25 amp breaker, or 208-230 volts AC and a 30
amp breaker. The industrial grade power cord is 6-Ft. long. A simple
push-button switch raises the lift and a push lever controls the
lowering. Simple quick-disconnect hoses can be positioned easily for
single or dual column operation.
Adjustable lifting arms and stackable adapters
Increases overall arm positioning for lifting a variety of different
vehicles that have Uni-body construction, OEM recommended pick-up
points, or wide and/or narrow frame configurations. Every MaxJax order
includes the low and medium stackable adapter sets.
Low-profile arms
Fit under the lowest compact and sport vehicles or custom motorcycles with lowered frames.
Automatic arm restraints
Each arm is equipped with durable arm restraints that automatically
engage each time the lift is raised. When the lift is lowered, the gear
type arm restraints automatically disengage to provide easy positioning
of the lift arms.
Maintenance-free slide blocks
Rather than using roller bearings that need constant lubrication and
maintenance, we use futuristic full-floating UHMW ultra-high molecular
weight polyethylene load bearings that never need lubrication and last
virtually the life of the lift.
Single-piece columns
We purposely manufacture the columns using single-piece construction
for added strength and less fatigue under heavy load conditions.
Direct-Drive technology
By utilizing two low-pressure HVLP Direct-Drive cylinders, we’ve
eliminated the need for lifting chains or screw mechanisms most commonly
found on other lift designs. HVLP Direct-Drive technology offers better
reliability, smoother operation and less maintenance.
Industrial-grade hydraulic cylinders
Integrated into every MaxJax® hydraulic cylinder is a one-piece,
pilot fitted, machined steel piston wrapped with specially designed,
pressure loaded U-cup piston seals, backups and wear bands that
virtually eliminates any fluid bypass. The micro-smooth chrome-rod is
machined from high yield, ground and polished C-1045/50 micro-alloy
steel and plated to a minimum of .001″ diametrically, to ensure superior
cylinder operation and life.
Two lifts in one
Our optional motorcycle adapter kit allows you to safely lift
motorcycles, ATV’s or other motorized vehicles to a comfortable working
height.
Specs
| LIFTING CAPACITY | 6,000 lbs. (2,722 kg) |
|---|---|
| MAX LOAD PER ARM | 1,500 lbs. (680 kg) |
| A HEIGHT OVERALL | 89.5″ (2,273 mm) |
| B HEIGHT OF COLUMN | 64″ (1,626 mm) |
| C MIN. PAD HEIGHT | 4.5″ (114 mm) |
| D MAX LIFT HEIGHT (PAD ONLY) | 47.5″ (1,207 mm) |
| E MAX LIFT HEIGHT (WITH 3″ ADAPTER) | 50.5″ (1,283 mm) |
| F ARM REACH (MIN – MAX) | 26″ – 40″ (660 mm – 1,016 mm) |
| G TYPICAL WIDTH (OUTSIDE OF BASE PLATE) | 105″ – 135″ (2,667 mm – 3,429 mm) |
| H DRIVE-THRU CLEARANCE | 74″ – 104″ (1,880 mm – 2,642 mm) |
| LOCKING POSITIONS | 7 (every 3″) |
| MOTOR | 110-220 VAC / 50-60 Hz. / 1 Ph. (20A/25A Breaker) |
| TIME OF FULL RISE | 45-seconds |
| INDIVIDUAL COLUMN WEIGHT | 300 lbs. (136 kg) |
| SHIPPING WEIGHT (STANDARD MODEL) | 960 lbs. (435 kg) |
